PP/PE/PVC Double wall corrugated plastic pipe extrusion machine

Due to the large demand of large diameter double wall corrugated pipes, we invented SB series high efficiency double wall corrugated pipe extrusion system. The extruded pipes have impact resistance, corrosion resistance, cold resistance and heat-proof characteristics, which have been widely applied in the agricultural water supply industries, and architectural water supply industries.

Main technique parameters
Model	Pipe diameter	Extruder model	Production capacity
ZKD75	40-75mm	SJ55/SJ65	80-130kg/h
ZKD120	40-120mm	SJ65/SJ75	110-200kg/h
ZKD315	110-315mm	SJ75/SJ90	250-400kg/h

CONFIGURATION
1	Vacuum drying automatic feeder	2 units
2	Single screw extruder	2 sets (one of inner layer, one for outer layer)
3	Die head	No. of sets as per pipe diameter range
4	Moulds	No. of sets as per pipe diameter range
5	Vacuum corrugator	1 unit
6	Hauling-off machine	1 unit
7	Coiler	1 unit
8	Cutting machine	1 unit
9	Stacker	1 unit

Vacuum drying automatic feeder

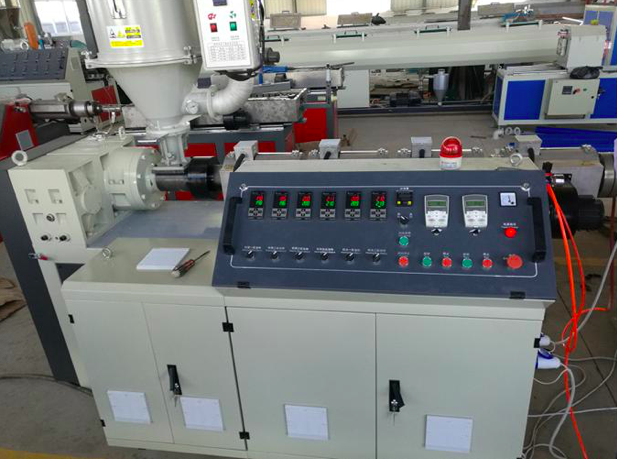

Single screw extruder

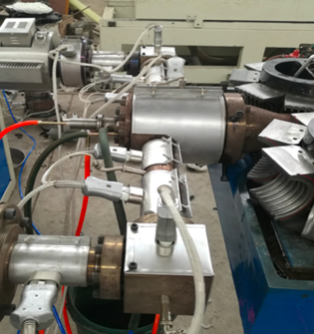

Die head

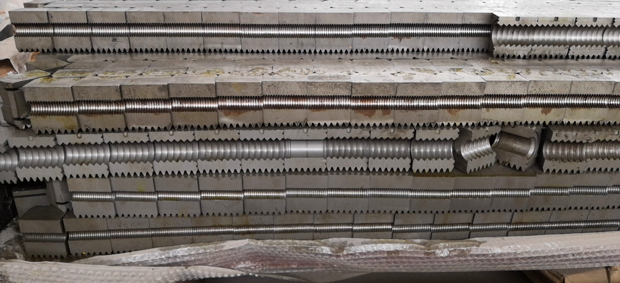

Moulds

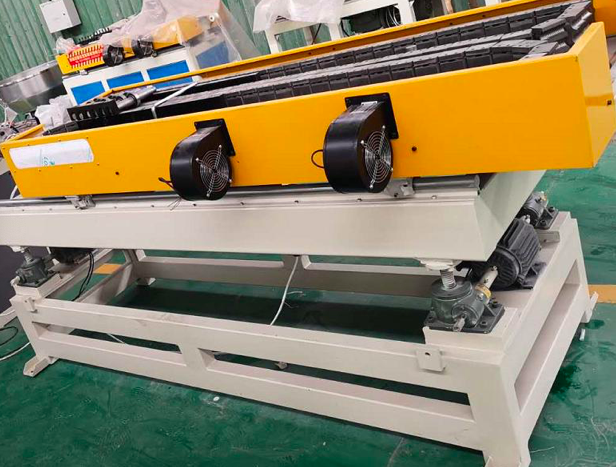

Vacuum corrugator

Professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years’ experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment. Based on innovation Professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years’
experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment. Based on innovation synchronous pavement surface vehicles and other road machinery and equipment. Based on innovation

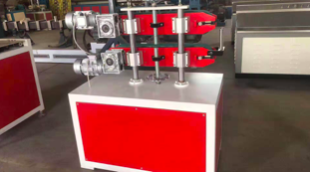

Hauling-off machine

Coiler

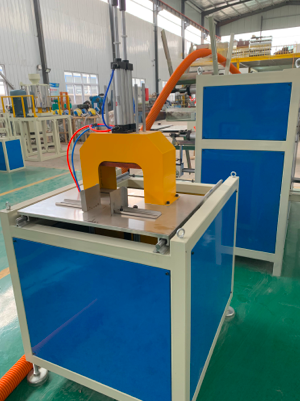

Cutting machine

Stacker
