PVC/CPVC Plastic Pipe Extrusion Machine China-Zhongkaid Plastic Machinery

Categories	Solid-wall Plastic Pipe Extrusion Line
Brand	ZKD Plastic pipe extrusion machinery Manufacturer
Model	ZKD-PVCG09
FOB port	Qingdao Port
Terms of Payment	L/C, Western Union, T/T, Paypal
Update Time	June 3,2023

Contact Now

Favorites

Detail Information

PVC/CPVC Plastic Pipe Extrusion Machine

PVC/CPVC plastic pipe extrusion line is used for the manufacturing of PVC pipes with different diameters and thickness which are mainly applied to agricultural and construction water supply and drainage, overhead or underground wire and cable. Due to the special characteristics of the CPVC plastic pipes, they are widely used in the fields of crude oil transportation, pipelines of chemical industry which require high temperature and corrosion resistance, hot and lukewarm water supply and drainage system, directly buried pipes of high and extra high voltage electricity, protection of sleeves of wires and cables, etc.

MAIN TECHNIQUE PARAMETERS
Parameter	SJPGZ-160	SJPGZ-400	SJPGZ-630
Main machine model	SJZ-65	SJZ-80	SJZ-92
Max.Pipe diameter(mm)	160	400	630
Cooling water volume (m/h)	6	9	13
Traction speed(m/min)	0.4-3	0.4-3	0.4-3
Installment capacity	95	135	255

CONFIGURATION
ITEM NO.	NAME	QUANTITY
1	Conical double screw extruder	1 unit
2	Die head and sizing sleeve	1 unit
3	Vacuum sprinkling water cooling tank	1 unit
4	Hauling-off machine	1 unit
5	No dust saw cutter	1 unit
6	Turnover table	1 unit

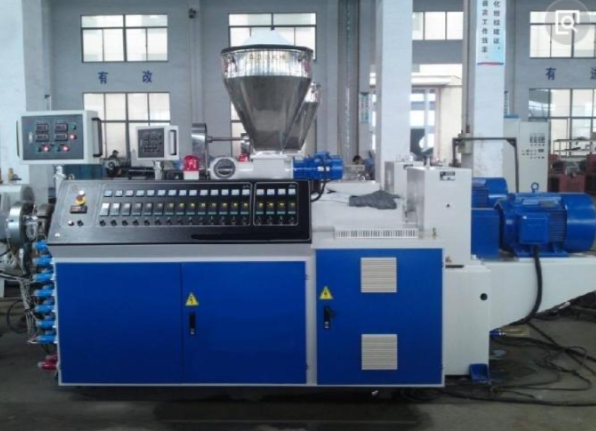

Conical double screw extruder

Die head

Sizing sleeve

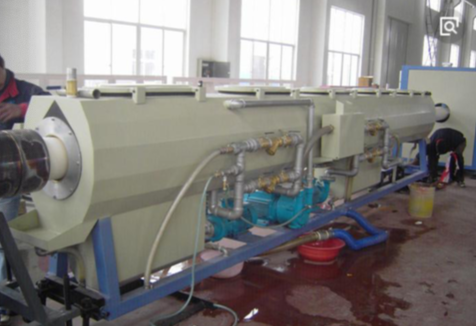

Vacuum sprinkling water cooling tank

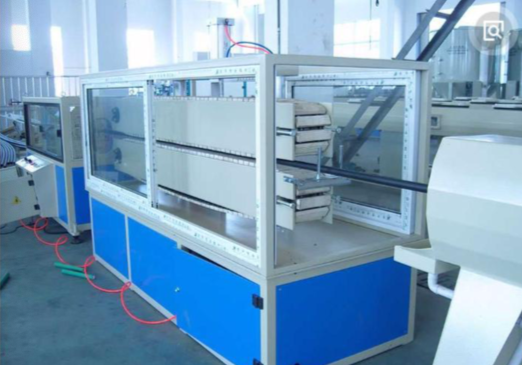

Hauling-off machine

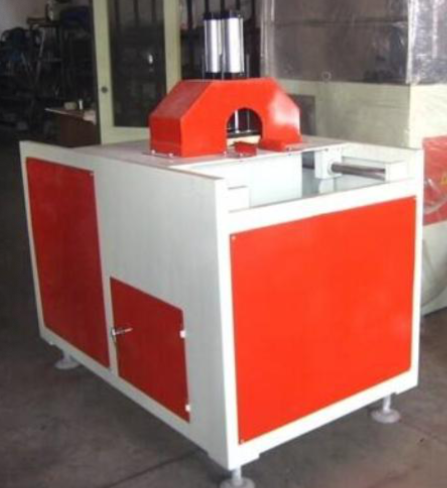

No dust saw cutter

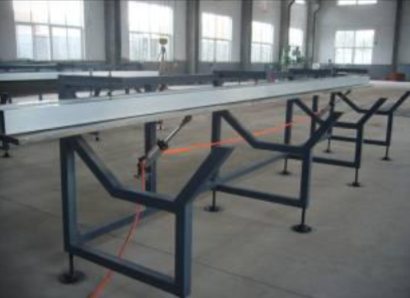

Turnover table
