PP/PE/PVC single-wall sorrugated plastic pipe extrusion machine
Single wall corrugated plastic pipe extrusion machine can be used to produce PE/PP/EVA/PVC and PA pipes continuously. These single-wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resistance, high intensity and good flexibility, etc. They are widely used in the fields of auto wire harness, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lantern wires, tubes of air conditioners and washing machines, etc.

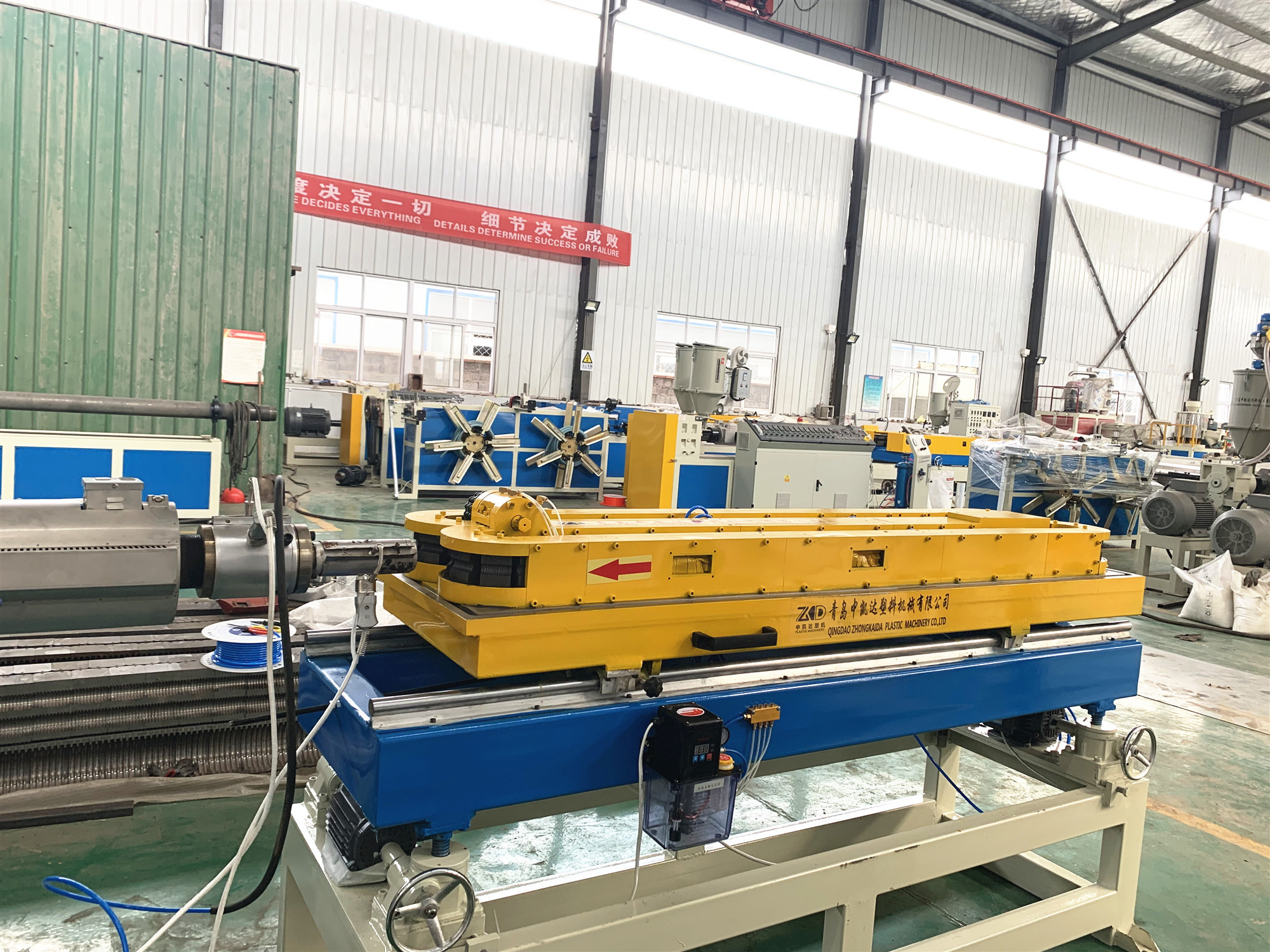

This production line is developed by us and adopting gears to run the moulds and templates, so as to realize water circulation cooling and air cooling of the pipes, which ensures high-speed moulding and corrugation, smooth inner and outer walls of the pipe.
Main Technique Parameters
Pipe Diameter Range (mm)
Main Machine Model
Production Capacity (kg/h)
Extruder Motor Power (kw)
Forming Machine Motor Power(kw)
Quantity of Moulds Pairs
Wind and Water Cooling
Automatically & Manually

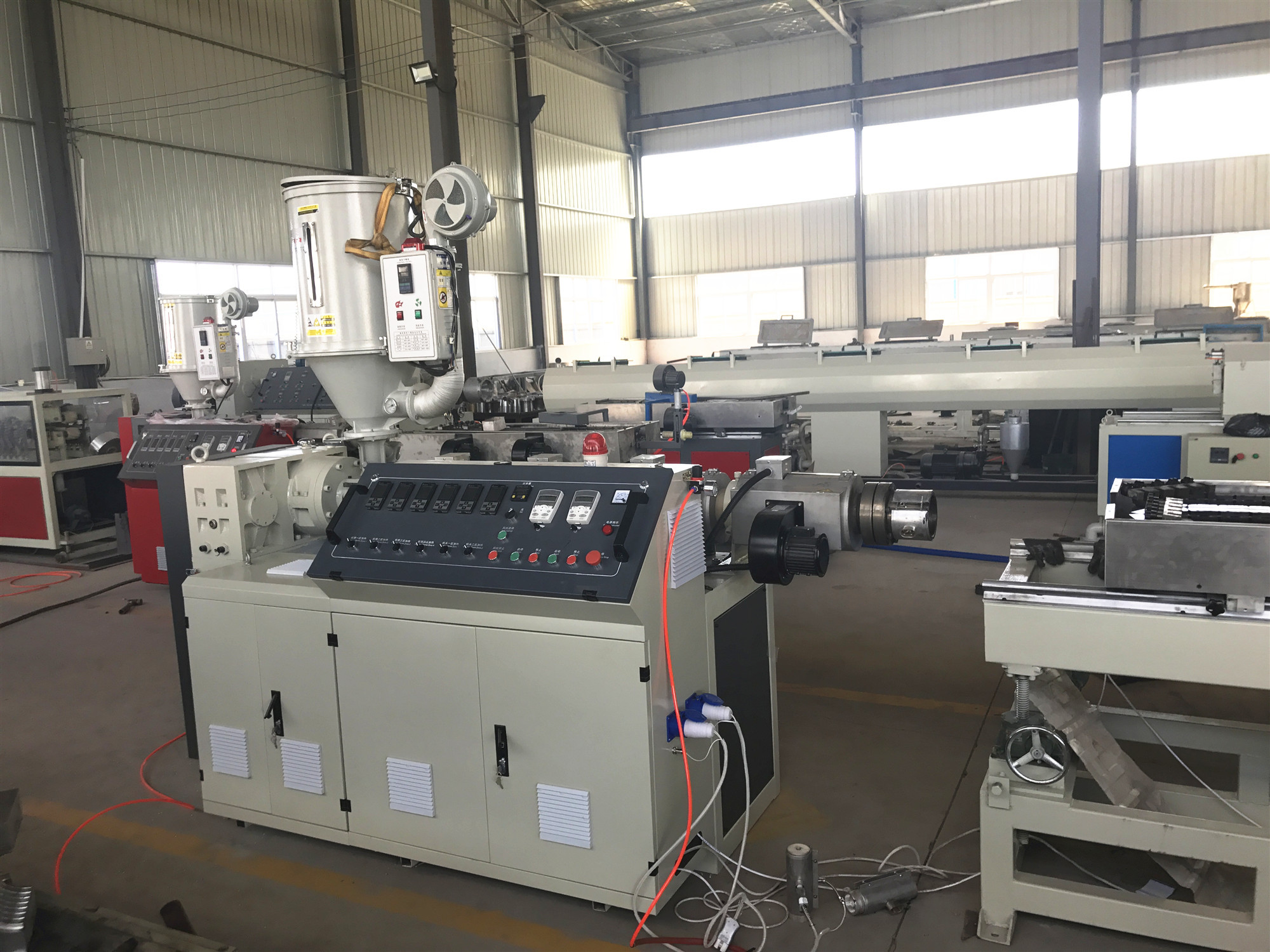

Single screw extruder
Extruder L/D: 30:1
Surface treatment: Nitriding and polishing

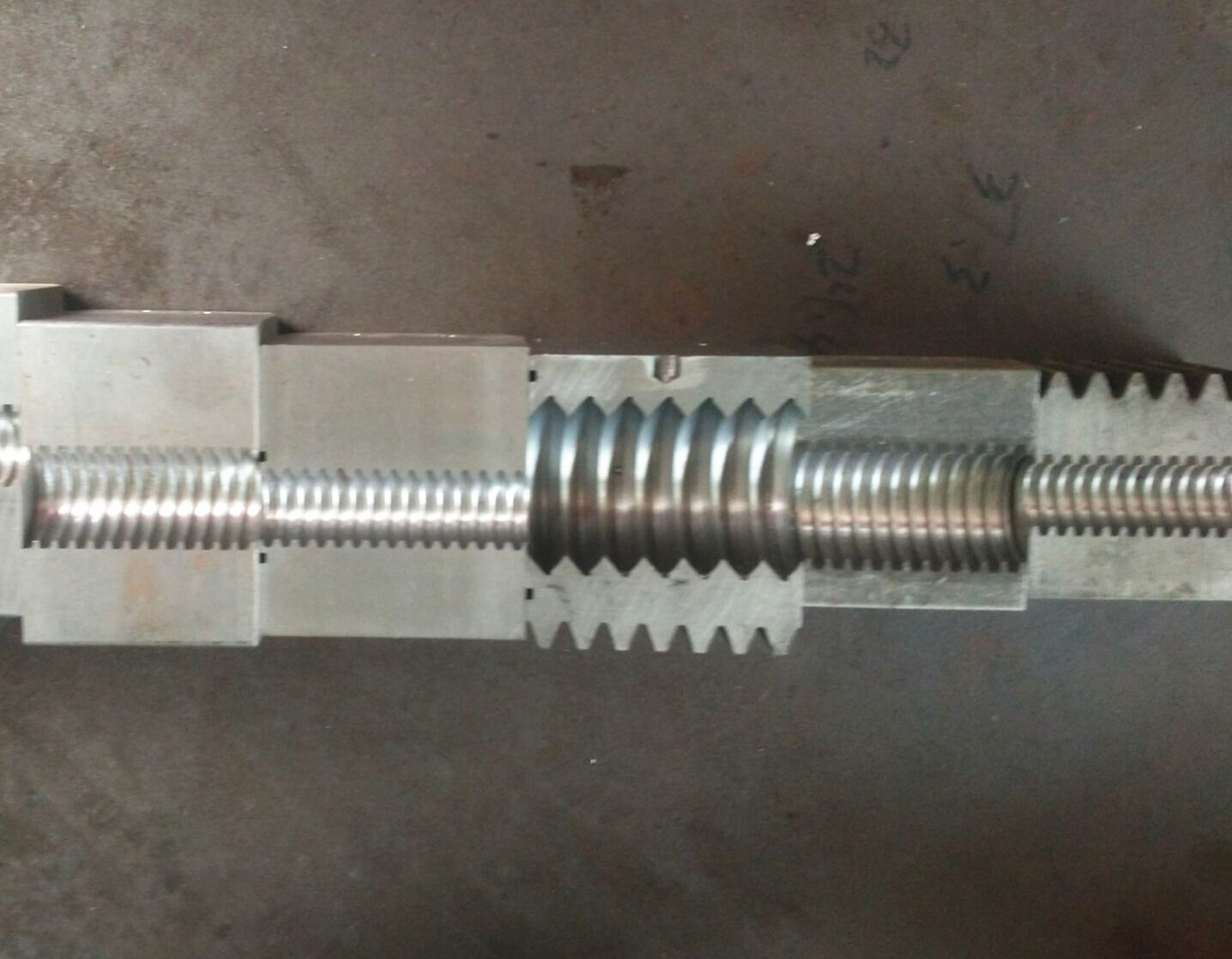

We could supply moulds and dies with different size and shape to produce single-wall corrugated pipe ranging from φ7-φ315mm.
Material of the moulds: High quality die steel.

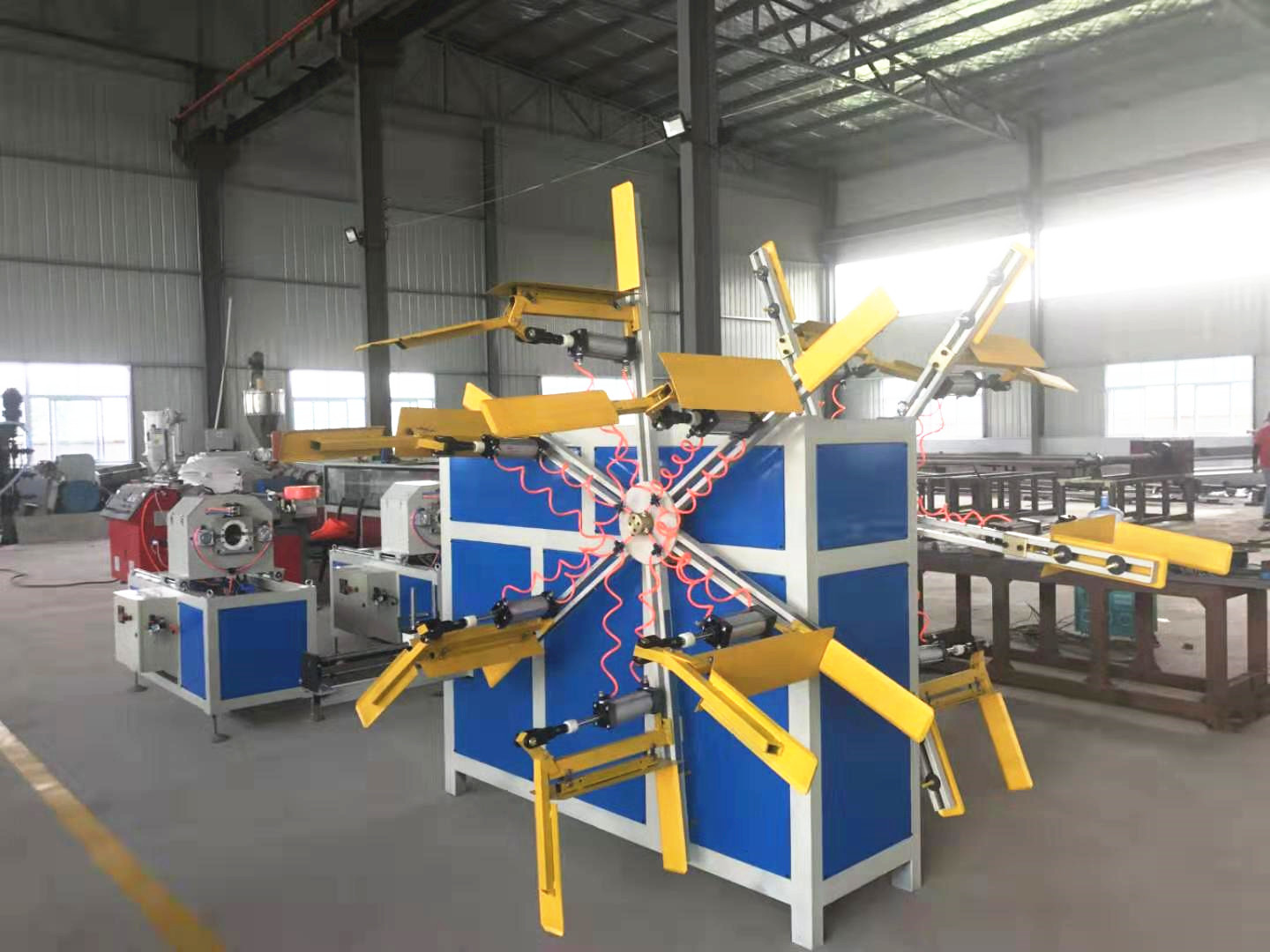

Single-station or Double-station winding machines are available
